2. Tube Loading, Automatic Color Code Sensor, Filling, Sealing and Batch Coding, Cutting/Trimming, Eject finished product All in 1
3. Batch coding, Date Coding(Standard 2*3mm 8 Digitals/Letters)
4. Wide Filling Range 5~250ml

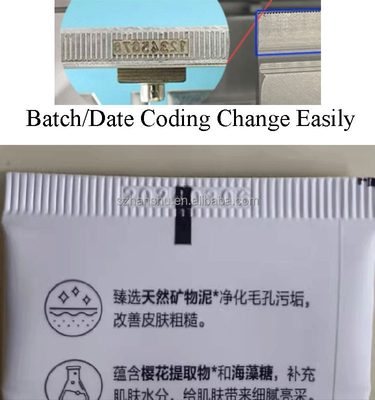

5. Batch Coding, Date Coding Changeable Separately
6. Japan Panasonic Photoelectric/Color Code Sensor Make Sure Precise and Stable Guiding
7. HMI +PLC Control, Easy to Operate. English Interface(Other Language On request)
8. SU304 Stainless Steel, Meet GMP Requirement.
9. Safety Protection: no filling without tubes, no sealing without tubes, cutting, and overload protection
10. Pneumatic actuator control valve, efficient and safe. The flow channel can be adjusted and cleaned independently.
11. Anti-drip and Anti-drawing filling nozzle structure design.
12. Cam Indexer driven, Faster and more stable than cylinder drive.
Working Process:
1. Tube Loading(Manual or Automatic)
2. Color Code Mark Search/Locate
3. Filling(Heating and Stirring Optional)
4. Sealing(Batch/Date Code Easy changeable)
5. Cutting/Trimming
6. Ejection Finished Products
Tube Loading
Manual or Automatic
Color Code Mark Search
Japan Panasonic Photoelectric
Filling
Accurate (Heating and Stirring Optional)
Sealing
Batch/Date Code Easy changeable
Cutting/Trimming
High Quality Steel
Ejection Finished Products
Stable and efficiency
Ultrasonic Mold/Horn
harden by quenching
Principle of ultrasonic tube hose filling and sealing machine
High-frequency energy conversion and transmission
The equipment converts electrical energy into high-frequency (usually 20kHz) mechanical vibration energy through an ultrasonic generator, and transmits it to the sealing mold by a transducer to form periodic high-frequency vibration
Molecular friction fusion
Ultrasonic vibration acts on the sealing of the hose, causing the plastic molecules to rub violently to produce instantaneous high temperature (about 200-300℃), causing the material to melt and bond. This process does not require glue or heat source assistance, and the heat is only concentrated on the contact surface to avoid damage to heat-sensitive substances in the tube
Integrated molding and embossing
The fusion process simultaneously completes embossing or coding operations, and customized textures or logos can be formed at the sealing, which has both sealing and aesthetics
Application fields
Ultrasonic tube/hose filling and sealing machines are widely used in the following industries due to their high efficiency, stability and strong adaptability:
Pharmaceutical industry: sealing of pharmaceutical hoses (such as ointments and gels) to ensure sealing and sterility
Daily chemicals: toothpaste, facial cleanser Sealing of plastic/composite hoses such as milk, skin care products, and hair care products
Food industry: Sealing of soft packaging such as sauces, condiments, and jellies to meet food safety requirements
Industrial field: High-strength sealing of industrial hoses such as lubricants and adhesives
Technical advantages
Environmental protection: No adhesives are required to reduce chemical pollution
High efficiency: A single sealing takes only 1-2 seconds, supporting automated assembly line production
Strong compatibility: Can handle a variety of materials such as plastics and aluminum-plastic composite pipes, suitable for hoses with a diameter of 10-50mm

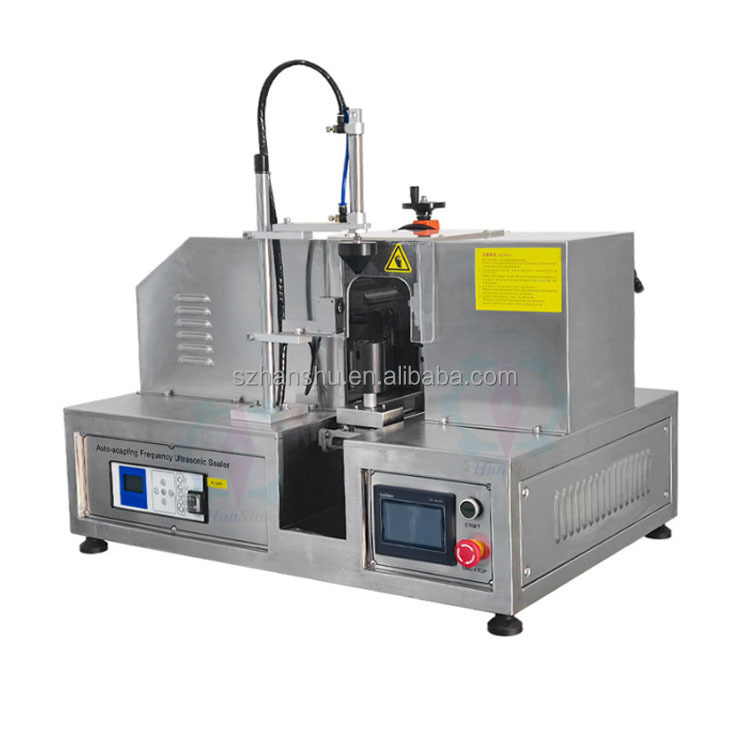

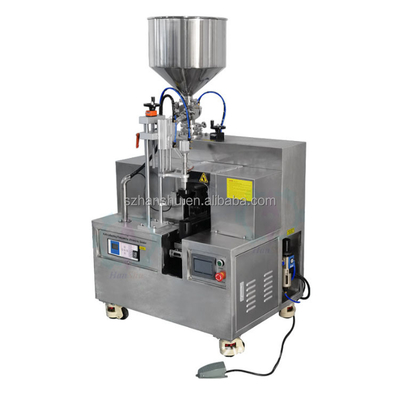

Other Desktop Types:
